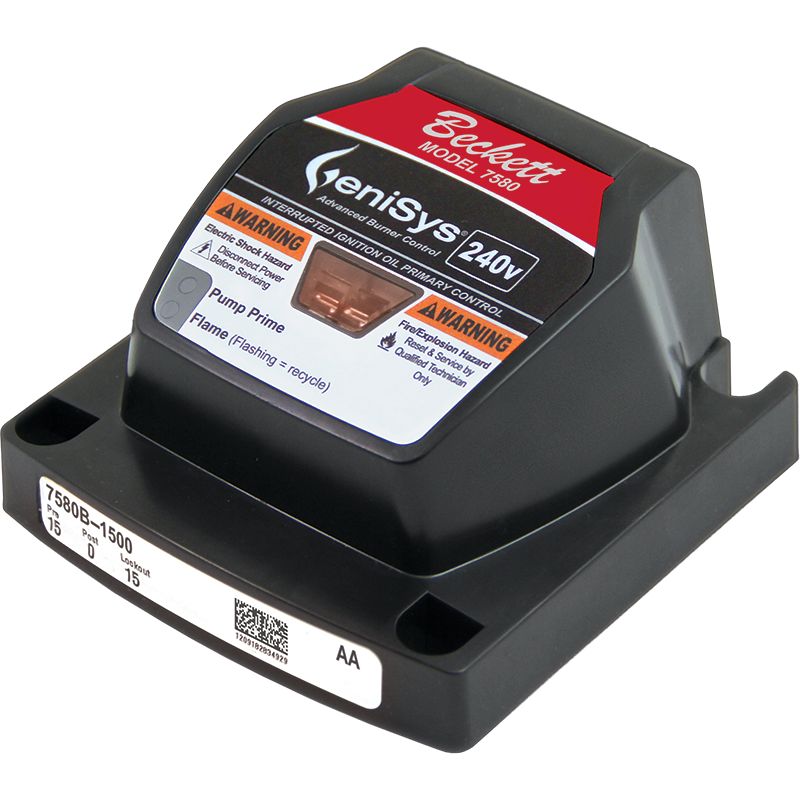

GeniSys™ 7580 240V Oil Burner Control

by Beckett
$192.99
SKU 7580A0000U
Model

7580 GeniSys 240v Control Manual

7580 GeniSys Product Sheet

Features & Benefits

  • Epoxy potted for moisture resistance
  • Compatible with most operating controls
  • Customizable pre-time and post-time
  • Three status lights for system monitoring and diagnostics
  • Welded relay protection with redundant motor relays
  • Limited reset and limited recycle
  • Sleek, modern design
  • Technician pump prime mode
  • 18 month warranty
  • Communication ports for the contractor tool
Inputs
  • Voltage: 208-240 VAC
  • Current: 100 mA plus burner motor, igniter, and valve loads
  • Frequency: 50/60 Hz
Outputs
  • Motor: 208-240 VAC, 5 full load amps (FLA*), 30 locked rotor amps (LRA) Note: Reduce motor FLA rating by igniter current
  • Igniter: 208-240 VAC, 3 A @ 0.7 PF min
  • Solenoid Valve: 208-240 VAC, 1 A @ 0.7 PF min
  • Thermostat Anticipator Current: 0.1 A (if applicable)
  • Thermostat Voltage: 24 VAC (if applicable)
