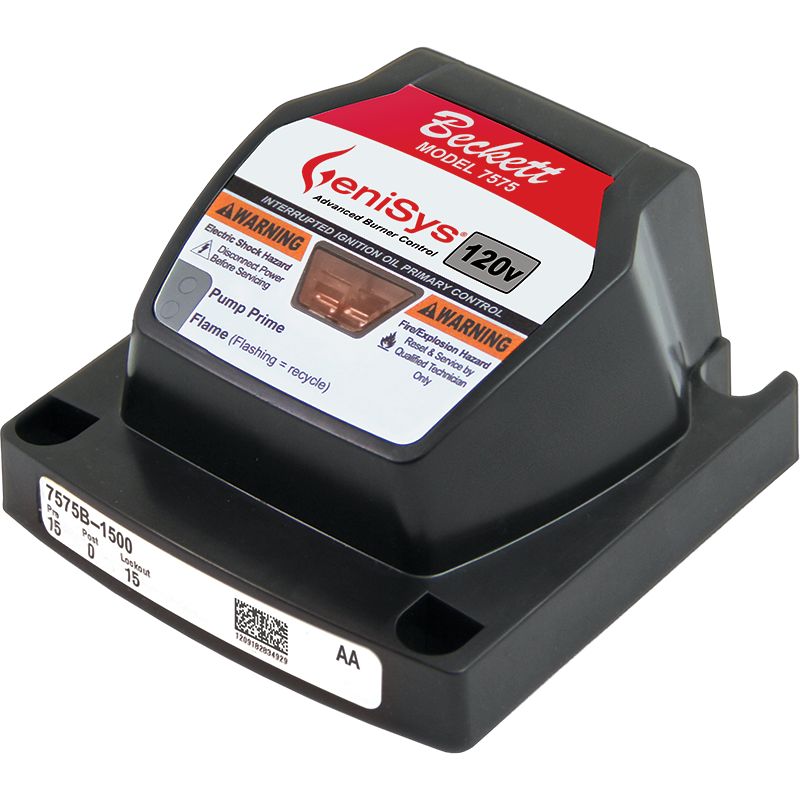

GeniSys™ 7575 120V Oil Burner Control

by Beckett
$125.30
SKU 7575A0000U
Model

7575 GeniSys 120v Control Manual
7575 120V GeniSys Product Sheet

Features & Benefits

  • Epoxy potted for moisture resistance
  • Compatible with most operating controls
  • Customizable pre-time and post-time
  • Three status lights for system monitoring and diagnostics
  • Welded relay protection with redundant motor relays
  • Limited reset and limited recycle
  • Sleek, modern design
  • Technician pump prime mode
  • 18 month warranty
  • Communication ports for the contractor tool
Inputs
  • Voltage: 102-132 VAC
  • Current: 150 mA plus burner motor, igniter, and valve loads
  • Frequency: 60 Hz
Outputs
  • Motor: 120 VAC, 10 full load amps (FLA*), 60 locked rotor amps (LRA) Note: Reduce motor FLA rating by igniter current
  • Igniter: 120 VAC, 3 A @ 0.7 PF min
  • Solenoid Valve: 120 VAC, 1 A @ 0.7 PF min
  • Thermostat Anticipator Current: 0.1 A (if applicable)
  • Thermostat Voltage: 24 VAC (if applicable)
