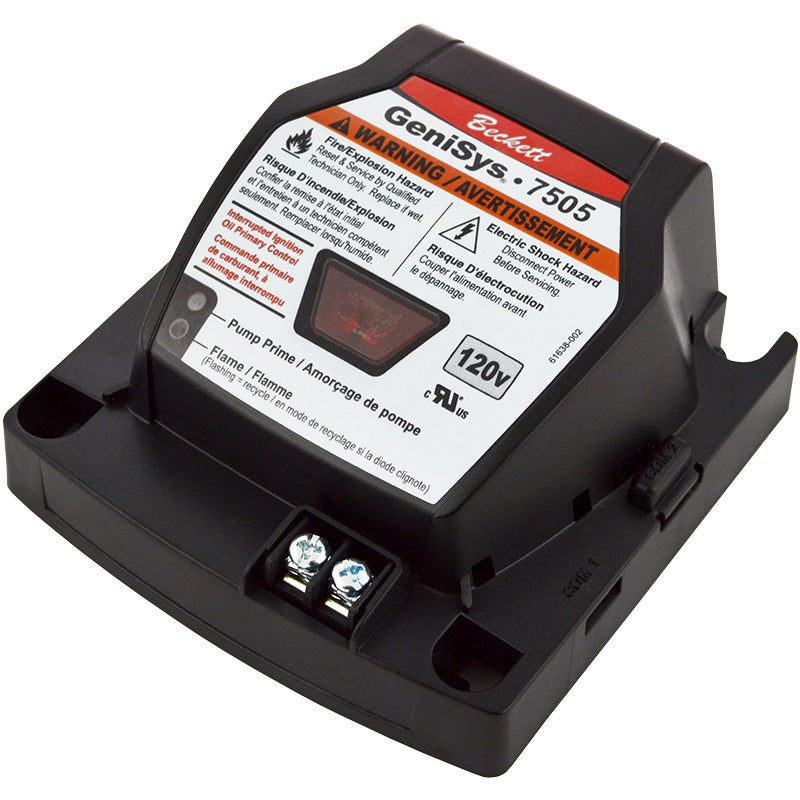

GeniSys™ 7505 120V Oil Burner Control

by Beckett
$113.28
SKU 7505A0000U
Model

7505 GeniSys Product Manual
GeniSys Display and Contractor Tool Manual
Combination Control Installation Instructions

Features & Benefits

  • Water Resistant
  • Thermostat and boiler control compatible
  • Customizable pre-time and post-time
  • Three status lights for system monitoring and diagnostics
  • Welded relay protection with redundant motor relays
  • Limited reset and limited recycle
  • Sleek, modern design
  • Technician Pump Prime mode
  • 5-Year Warranty
  • 7505a replaces Honeywell R8184G
  • 7505b replaces Honeywell R7184B
  • Two communication ports for adding alarm contacts, programming display, and/or future wireless communications

Technical Information

GeniSys Contractor Tool Lockout Tech Bulletin

  • Voltage: 102 to 132 VAC
  • Current: 100 mA plus burner motor, igniter, and valve loads
  • Frequency: 60 Hz
  • Motor: 120 VAC, 10 full load amps (FLA), 60 locked rotor amps (LRA)
  • Igniter: 120 VAC, 3 A @ 0.7 PF min
  • Solenoid Valve: 120 VAC, 1 A @ 0.7 PF min
  • Thermostat Anticipator Current: 0.1 A
  • Thermostat Voltage: 24 VAC
  • Storage and Operating Ambient Temperature: -4°F to +150°F (-20°C to +65°C)
  • Moisture: 5-85% RH, non-condensing and non-crystallizing
  • Approvals: Underwriters Laboratory Recognition per UL372 and UL1998, and CSA-B140.0
