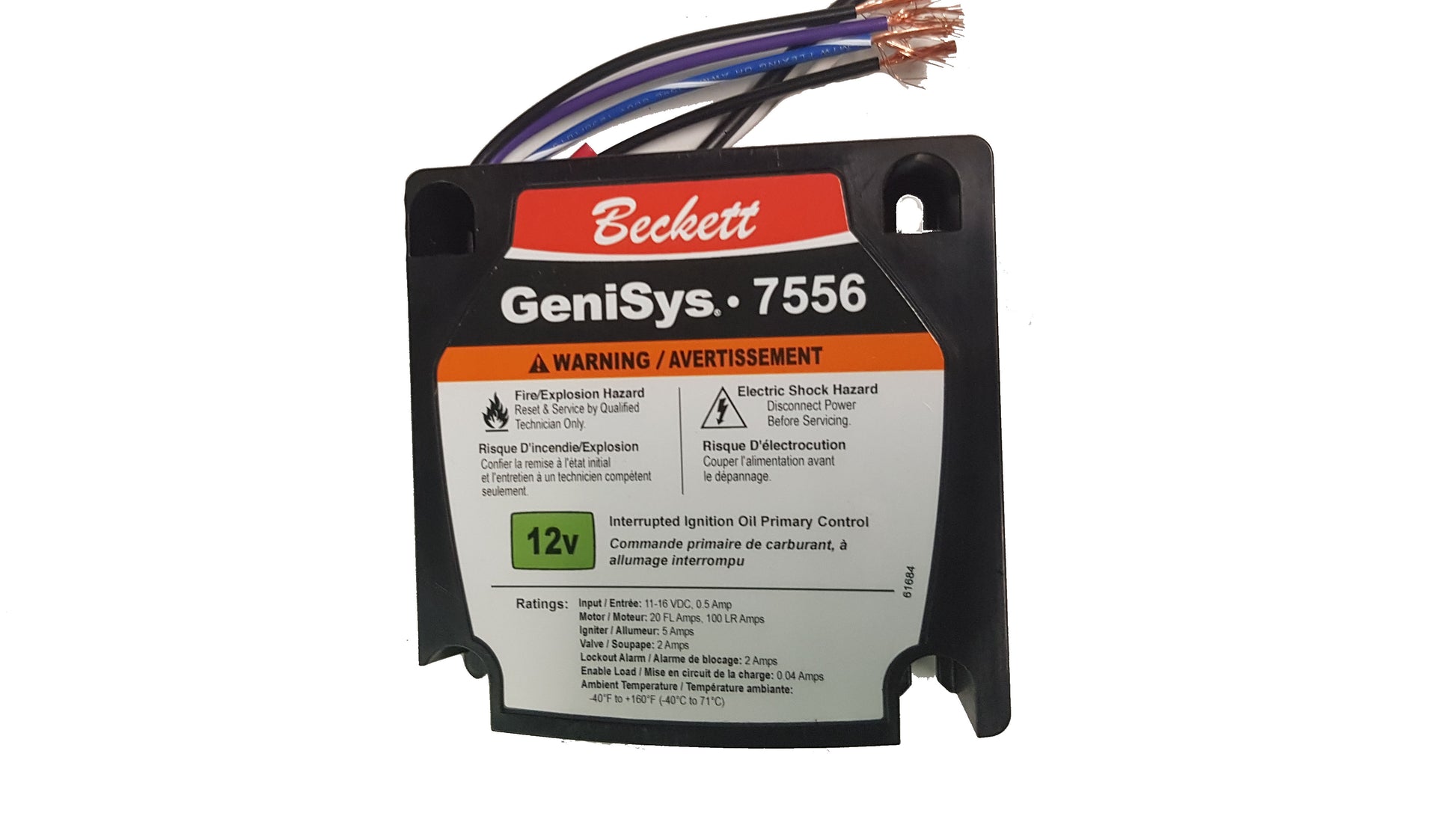

Beckett 7556A0000U GeniSys 7556A 12VDC Oil Burner Control 15 Second Lockout

by Beckett
$234.56
SKU GeniSys 7556

Features

Inputs
Voltage: 12 VDC nominal (11 to 16 VDC)
Current: 160 mA nominal (500 mA max at 16 VDC)
Enable Load: 40mA at 12 VDC

Outputs
Motor: 12 VDC, 20 full load amps (FLA), 100 locked rotor amps (LRA)
Igniter: 12 VDC, 5 A
Solenoid Valve: 12 VDC, 2 A
Lockout Alarm: 12 VDC, 2 A

The Beckett GeniSy™ 12 V Advanced Burner Control is a 12 VDC primary safety control for oil burners used on pressure washers, road stripers, crack sealers, hot patchers, and asphalt distributors, to name a few examples. The GeniSys™ 12 V is used with a suitable cad cell flame sensor to control the oil burner motor, igniter, and optional solenoid valve. It can provide interrupted or intermittent duty ignition, and it has a 15 second lockout time.
